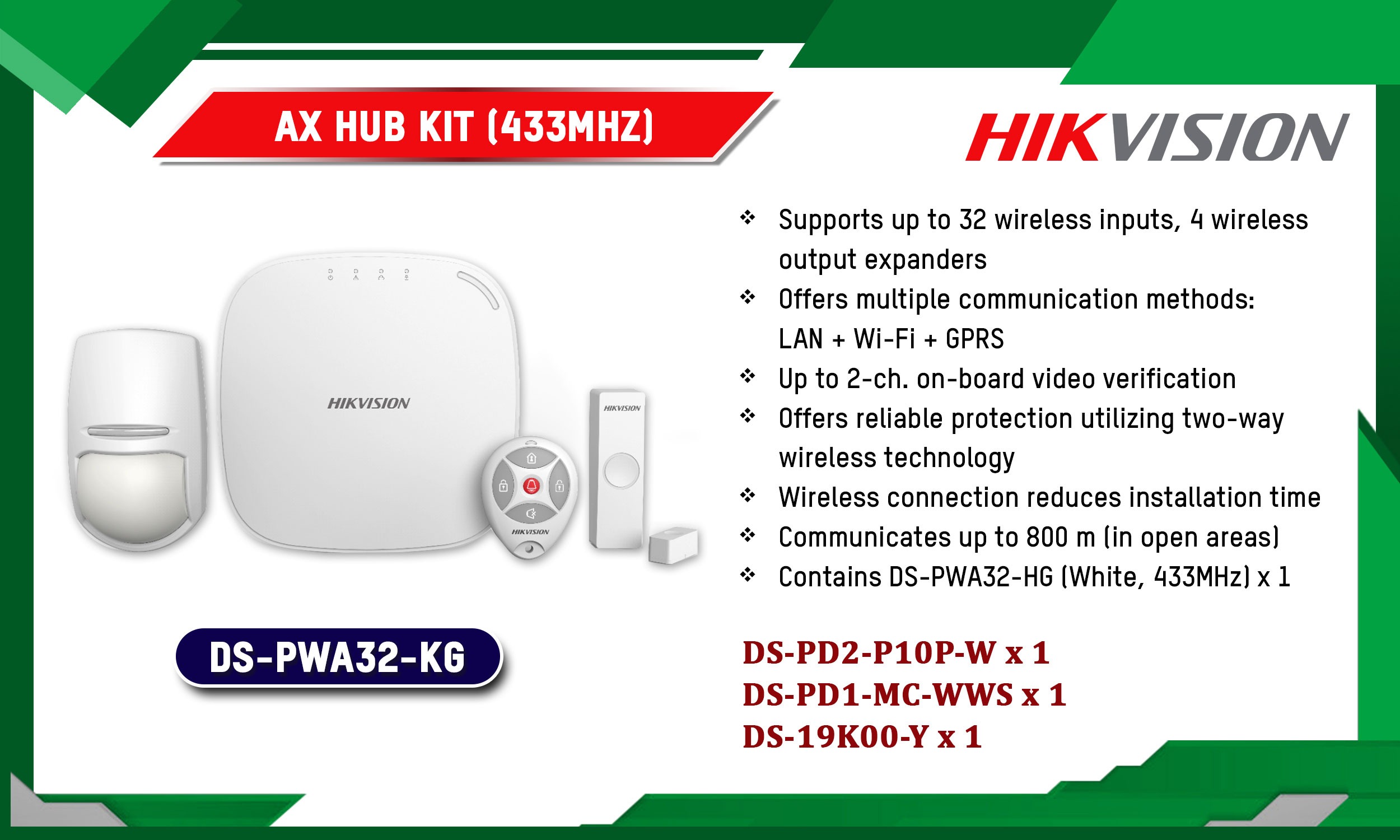

DS-PWA32-KG

Description

Detection Performance

• Detection Range: 10m(DS-PD2-P10P-W(433MHz))
• Angle: 85°(DS-PD2-P10P-W(433MHz))
• Velocity Range: 0.3m/s ~ 3.0m/s(DS-PD2-P10P-W(433MHz))
• Pet Immunity: 24kg(DS-PD2-P10P-W(433MHz))

Software Features

• Partition: 4
• Onboard Video Clips: Up to 2-ch onboard video
• Tamper-Proof: Tampering alarm(DS-PWA32-HS(433MHz) Front, rear, and bracket tamper signal input(DS-PD2-P10P-W(433MHz)) Front and rear(DS-PD1-MC-WWS(H)(433M)）
• Schedule: Auto Arm/Disarm Schedule
• SMS Notification: Support
• Phone Call Notification: Support
• Phone Numbers: 8
• Signal Strength Indication: Signal Strength Indicators (SSI)
• Firmware Undate Tools: Web client / iVMS-4200 / Hik-Connect
• Configuration Tools: Web client / iVMS-4200 / Hik-Connect
• Application: iVMS-4200, and mobile APP
• Protocol: SIA – Contact ID; EHome v5.0
• User: 13 (1 installer, 1 administrator, and 11 general user)

Hardware Features

• Alarm Input: 32
• Alarm Output: 32
• Indicator: LED

RF Transmission

• Frequency: 433MHz
• Modulation: 2GFSK(DS-PWA32-HS(433MHz)） FSK(DS-19K00-Y(433MHz)）
• RF Speed: 10kbps（DS-19K00-Y(433MHz)、DS-PD1-MC-WWS(H)(433M)）
• RF Range: 800m (Open Area)(DS-PWA32-HS(433MHz)、DS-PD2-P10P-W(433MHz))、DS-PD1-MC-WWS(H)(433M)）300m (Open area)（DS-19K00-Y(433MHz)）

Electrical Characteristics

• Power Supply: 5 VDC，10 W(DS-PWA32-HS(433MHz) CR2032 3.0V, 2-year power supply（DS-19K00-Y(433MHz)）
• Battery Type: 4520 mAh lithium backup battery(DS-PWA32-HS(433MHz) 1×CR123A(DS-PD2-P10P-W(433MHz)) 1×CR123A, 3.0V(DS-PD1-MC-WWS(H)(433M)）,CR2032 3.0V(DS-19K00-Y(433MHz))
• Battery Life Span: Rechargeable lithium battery, supports up to 12h power supply(DS-PWA32-HS(433MHz) 2 years Battery life (DS-PD2-P10P-W(433MHz)、(DS-PD1-MC-WWS(H)(433M)）、（DS-19K00-Y(433MHz)）
• Power Consumption: < 5.6 W

Wireless Transmission

• Wired Network: 10M/100M Self-adaptive
• Network Encryption: AES-128 encryption
• Cellular Network: GPRS
• Wi-Fi Standard: 802.11b/g/n
• Encryption: Supported
• Wi-Fi Channel: 2.4 G

General

• Operation Temperature: –10 °C to 55 °C(DS-PWA32-HS(433MHz)、DS-PD1-MC-WWS(H)(433M)、DS-19K00-Y(433MHz)） ‘-10℃~+40℃ (DS-PD2-P10P-W(433MHz))
• Operation Humidity: 10% to 90%
• Shell Material: PC+ABS
• Dimension(WxHxD): 155 × 155 × 35mm(DS-PWA32-HS(433MHz)) 117mm× 69mm× 50mm (DS-PD2-P10P-W(433MHz)) 84mm x 25mm x 20.99mm(DS-PD1-MC-WWS(H)(433M)）63mm x 49mm x 16mm(DS-19K00-Y(433MHz))
• Weight: 125g (DS-PD2-P10P-W(433MHz)) 37g(DS-PD1-MC-WWS(H)(433M)） 24.5g(DS-19K00-Y(433MHz))
• Application Scenario: indoor
• Color: White
• Installation Height: 1.8m ~ 2.4m(DS-PD2-P10P-W(433MHz))
• Bracket: Including 1 x Ceiling mounting bracket, 1 x Wall mounting bracket, used by DS-PD2-P10P-W(435MHz)

Audio

• Audio Output: 1, 1.5W

Device Management

• Keyfob: 8
• Wireless Siren: 4
• Tag Reader: 4
• Keypad: 4
