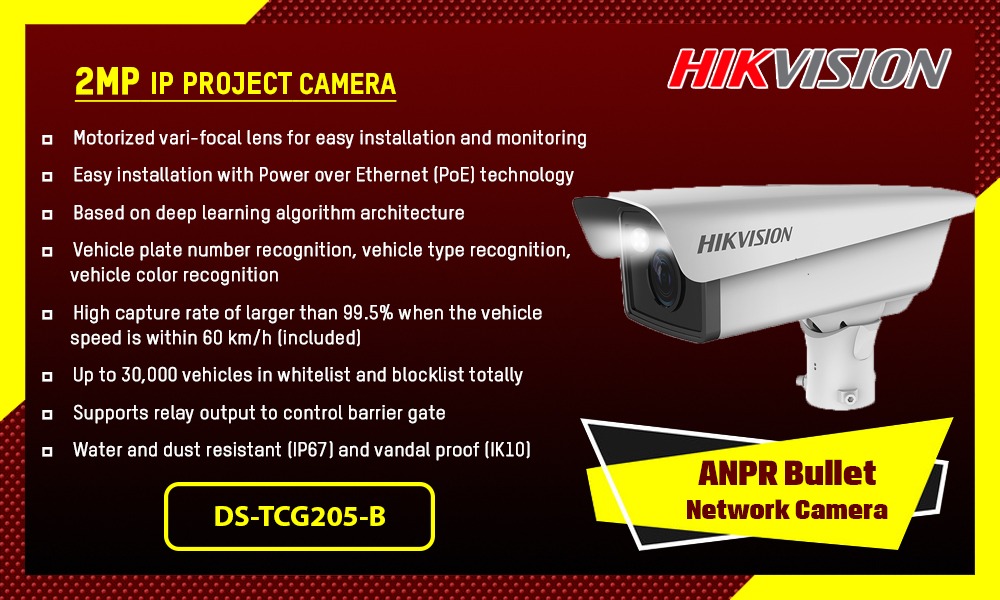

DS-TCG205-B

Description

Datasheet: DS-TCG205-B

User Manual: DS-TCG205-B

Quick Start Guide: DS-TCG205-B

Camera

• Image Sensor: 1/2.8″ Progressive Scan CMOS
• Min. Illumination
  • Color: 0.002 Lux@(F1.5, AGC ON)
  • B/W: 0.0002 Lux@(F1.5, AGC ON)
• Lens: 2.8 mm to 12 mm
• IR Cut Filter: Supported

Lens

• Focus: One-touch focus
• Auto-Iris: DC drive
• Supplement Light: Auto light control/time control

Compression Standard

• Video Compression: H.265, H.264, MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps


• Max. Resolution: 1920 × 1200
• Image Settings
  • Saturation: 0 to 100
  • Brightness: 0 to 100
  • Contrast: 0 to 100
  • Gain: 0 to 100
  • 3D DNR: Off, Normal, and Expert modes are selectable
  • White balance: White Balance 1 and White Balance 2 are selectable
• Image Format: JPEG
• Frame Rate: 25 fps (P)/30 fps (N)
• Format: JPEG

Network

• Network Storage: SD/SDHC
• Protocols: TCP/IP, HTTP, DHCP, DNS, RTP, RTSP, NTP, FTP picture upload
• Security: Heartbeat, password protection, NTP

Interfaces

• Barrier Interface: 2-ch relay outputs,
• RS-485 Interface: 1 RS-485 serial port,
• Audio Output: 1-ch
• Triggered Input: 3-ch triggered inputs, including 1-ch I/O triggered input and 2-ch alarm inputs
• Relay Output: 2-ch relay outputs, supporting rising/falling/stopping of barrier gate boom pole
• Ethernet TCP/IP: 1-ch

General

• Working Temperature: -30 °C to 70 °C (-22 °F to 158 °F)
• Working Humidity: 90% or less (non-condensing)
• Power Supply: 100 to 240 VAC/12 V PoE
• Weight: 5kg
• Dimensions: 145*357*211(mm)

Items

• Level Of Protection: IP67, IK10

Trigger Mode

• By Video: Supported
• By External Interfaces: 1-ch

Vehicle Recognition

• Vehicle Color: Red, yellow (including orange), green, blue, purple, brown, white, grey (including silvery), black
• Brand: Hyundai, Toyota, Kia, Honda, Volkswagen, Benz, Nissan, Ford, ISUZU, BMW, Chevrolet, Mitsubishi, Renault, Opel, Suzuki, Skoda, Daewoo, Audi, Mazda, Hino, Peugeot, Ssang Yong, Citroen, Fiat, Scania, MAN, Volvo, Lexus, Seat, Land Rover, Daihatsu, UD Trucks, Subaru, IVECO, MINI, Jeep, Porsche, Chery, Dodge, Chrysler, Acura, Alfa Romeo, Great Wall, Infiniti, Smart, SAIC Maxus, JAC, Jaguar, GMC, Lincoln, JMC, SAAB, FAW, Yutong, Mercury, Joylong, Geely, Cadillac, Jinbei, Ankai, Haima, Foton, King Long, Dongfeng, Emgrand
• Country/Region Supported By ANPR
  • Mid-East:
    United Arab Emirates(Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
  • Africa:
    Nigeria, Kenya, Cote d’Ivoire, South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
  • Asia-Pacific:
    Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh
  • America:
    United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, Dominican, Guatemala
  • Europe:
    Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, Britain, Ireland, Germany, Italy, Austria, Israel, Palestine, Belgium, Luxembourg, Albania, Kosovo
  • Russian-Speaking Regions:
    Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russian Federation, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
• Vehicle Type: Car (including SUV, MPV, Pickup)/truck/bus/van

Vehicle Detection

• No Plate Vehicle Detection: Supported
