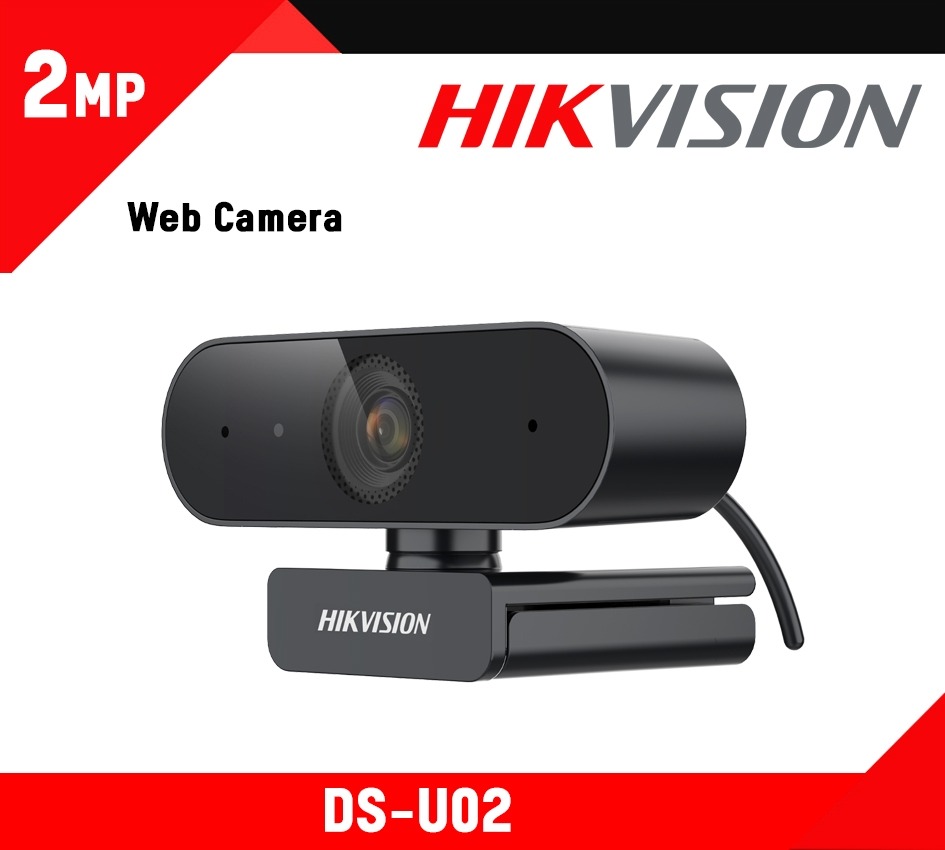

DS-U02
DS-U02
Availability: not in Stock

DS-U02

  • 2 Mp CMOS
  • High Quality Imaging With 1920 × 1080 Resolution
  • Min. Illumination: 0.1 Lux @ (F1.2, Agc On)
  • Agc For Self-Adaptive Brightness
  • Built-In Microphone With Clear Sound
  • Type A Interface, Supporting Usb 2.0 Protocol. Plug-And-Play, No Need To Install Driver Software

Description

Camera

Image Sensor

2 MP CMOS

Signal System

PAL/NTSC

Frame Rate

MJPG

1920 × 1080 @ 30 fps/25 fps

1280 × 960 @ 30 fps/25 fps

1280 × 720 @ 30 fps/25 fps

640 × 480 @ 30 fps/25 fps

YUV

1920 × 1080 @ 5 fps

1280 × 960 @ 5 fps

1280 × 720 @ 5 fps

640 × 480 @ 30 fps

Resolution

1920 (H) × 1080 (V)

Min. Illumination

0.1 Lux @ (F1.2, AGC ON)

Shutter Time

PAL: 1/25 s to 1/50,000 s; NTSC: 1/30 s to 1/50,000 s

Lens

3.6 mm fixed focal lens

Field of View

horizontal FOV: 80.3°, vertical FOV: 50.8°, diagonal FOV: 88.7°

Lens Mount

M8

Day & Night

24/7 Color Imaging

Angle Adjustment

pan: 360°; tilt: -15° to 15°; ratation: 0°

Cable Length

1.5 m

Depth of Field

0.5 m to ∞

Interface

Video Output

USB 2.0

Audio In

Built-in mic

Operating System

Windows XP/7/10, Android, Linux

General

Operating Conditions

-10°C to 40°C, Humidity: 90% or less (non-condensing)

Power Supply

DC 5V ± 5% (USB)

Consumption

Max. 1.2 W

Dimension

80.16 mm × 48.6 mm × 42.18 mm (3.16″ × 1.91″ × 1.66″)

Weight

Approx. 89 g (0.2 lb.)

Accessory

Packing List

Camera × 1

Quick Start Guide × 1
