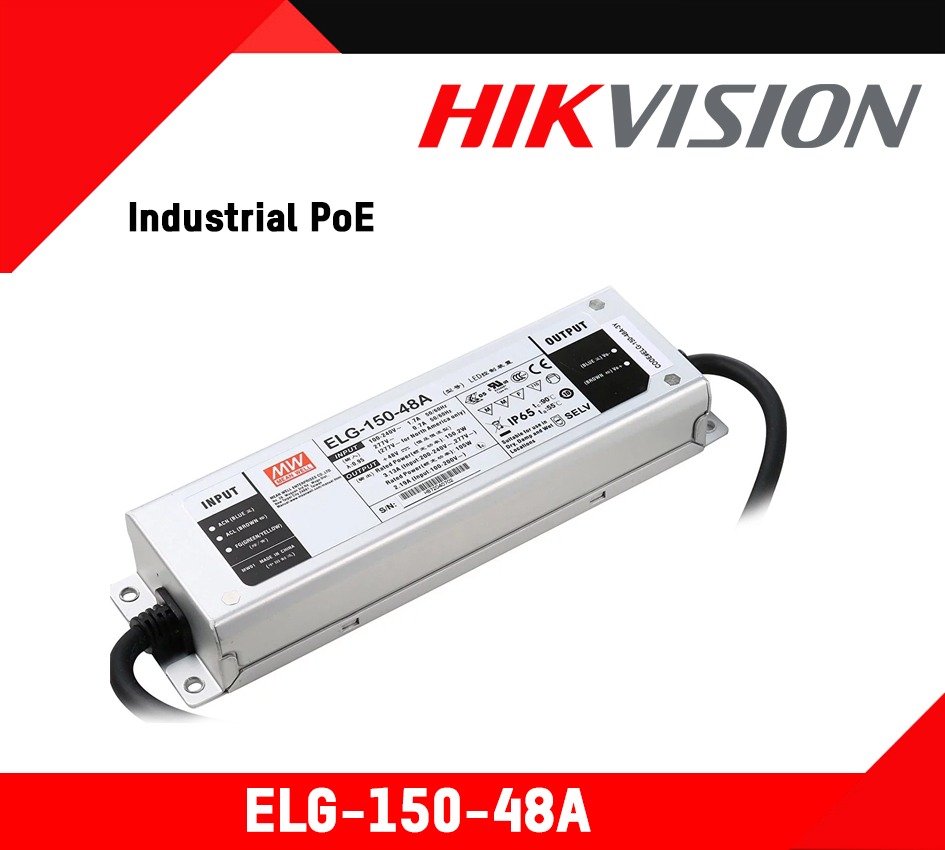

ELG-150-48A

Description

Datasheet: ELG-150-48A

OUTPUT

• DC VOLTAGE: 48V
• CONSTANT CURRENT REGIONNote.2: 24~48V
• RATED CURRENT(ForBETypeonly): 2.8A
• RATED POWER
  • 100VAC~180VAC
  • (ForAlltheTypes) 105W
  • 200VAC~305VAC
  • (ExceptforBEType) 150.2W
  • (ForBETypeonly) 134.4W
• RIPPLE & NOISE (Max.) Note.3: 250mVp-p
• VOLTAGE ADJ. RANGE: AdjustableforA/AB-Typeonly(viathebuilt-inpotentiometer) 43.2~52.8V
• CURRENT ADJ. RANGE: AdjustableforA/AB-Typeonly(viathebuilt-inpotentiometer) 1.56~3.13A
• VOLTAGE TOLERANCE Note.4: ±2.0%
• LINE REGULATION: ±0.5%
• LOAD REGULATION: ±0.5%
• AUXILIARY DC OUTPUT: Nominal15V(deviation11.5~15.5V)@0.3AforBE-Typeonly
• SETUP, RISE TIME Note.6: 1600ms, 80ms/115VAC 500ms,100ms/230VAC
• HOLD UP TIME (Typ.): 10ms/115VAC, 230VAC
• RATEDCURRENT: 3.13A

INPUT

• VOLTAGE RANGE Note.5: 100~ 305VAC 142~431VDC

  (Please refer to STATIC CHARACTERISTIC\” section)”

• FREQUENCY RANGE: 47~63Hz
• POWER FACTOR: PF≧0.97/115 VAC, PF≧0.95/230 VAC, PF≧0.92/277 VAC@full load

  (Please refer to POWER FACTOR(PF) CHARACTERISTIC\” section)”

• TOTAL HARMONIC DISTORTION: THD<20%(@load≧50%/115 VC; @load≧60%/230 VAC; @load≧75%/277 VAC)

  (Please refer to“TOTAL HARMONIC DISTORTION(THD)”section)

• EFFICIENCY (Typ.): 90%
• EFFICIENCY (Typ.)(ForBETypeonly): 88%
• AC CURRENT: 1.7 A/115 VAC 0.9 A/230 VAC 0.7 A/277 VAC
• INRUSH CURRENT (Typ.): COLD START 65 A(twidth=550 μ s measured at 50% Ipeak) at 230 VAC ; Per NEMA 410
• MAX .No. Of PSUs On 16A CIRCUIT BREAKER: 3 units (circuit breaker of type B)/ 6 units (circuit breaker of type C) at 230 VAC
• LEAKAGE CURRENT: <0.75 mA/277 VAC
• NO LOAD / STANDBY POWER CONSUMPTION: No load power consumption<0.5W for Blank/A/Dx/D2-Type Standby power consumption <0.5W for B/AB/DA-Type

PROTECTION

• OVER CURRENT: 95~108%

  Constant current limiting, recovers automatically after fault condition is removed

• SHORT CIRCUIT: Hiccup mode, recovers automatically after fault condition is removed
• OVER VOLTAGE: 54~62V

  Shut down output voltage, re-power on to recover

• OVER TEMPERATURE: Shut down output voltage, re-power on to recover

ENVIRONMENT

• WORKING TEMP: Tcase=-40~+90℃ (Please refer to“ OUTPUT LOAD vs TEMPERATURE”section)
• MAX. CASE TEMP: Tcase=+90℃
• WORKING HUMIDITY: 20~95% RH non-condensing
• STORAGE TEMP, HUMIDITY: -40~+80℃, 10~95% RH
• TEMP. COEFFICIENT: ±0.03%/℃ (0~60℃)
• VIBRATION: 10~500 Hz, 5G 12min./1cycle, period for 72min. each along X,Y,Z axes

SAFETY& EMC

• SAFETY STANDARDS: UL8750(type”HL”)(except for BE-type),CSA C22.2 No. 250.13-12;

  IEC/EN/AS/NZS 61347-1,IEC/EN/AS/NZS 61347-2-13 independent, EN62384,BIS IS15885(for 12/12B/12DA/24/24B/24DA/36A/42/42A/48A/54 only), EAC TP TC 004,GB19510.1, GB19510.14; IP65 or IP67; KC61347-1, KC61347-2-13 approved

• DALI STANDARDS: Compliance to IEC62386-101,102,207 for DA-Type only
• WITHSTAND VOLTAGE: I/P-O/P:3.75KVAC I/P-FG:2.0KVAC O/P-FG:1.5KVAC
• ISOLATION RESISTANCE: I/P-O/P, I/P-FG, O/P-FG:100M Ohms/ 500VDC / 25℃/ 70%RH
• EMC EMISSION: Compliance to EN55015, EN61000-3-2 ClassC(@load ≧ 60%); EN61000-3-3; GB17743 , GB17625.1 , EAC TPTC020 ; KCKN15 ,KN61547
• EMC IMMUNITY: Compliance to EN61000-4-2,3,4,5,6,8,11 ; EN61547 , light industry level (surge immunity Line-Earth 6KV, Line-Line 4KV),EAC TP TC020 ; KC KN 15,KN 61547

OTHERS

• MTBF: 899.8K hrs min. Telcordia SR-332 (Bellcore) 313.66 Khrs min.MIL-HDBK-217F(25℃)
• DIMENSION: 219*63-35.5mm (L*W*H)
• PACKING: 0.95Kg ; 16pcs/16.0kg/0.77CUFT
