Description
Specification:
-
- Holding force: 280kg/600lbs
- Lock: 250 x 27 x 48mm (L x H x D)
- Armature: 180 x 38 x 11mm (L x H x D)
- Voltage input: 12V DC
- Current draw: 12V/400mA
- Adjustable time delay: 0, 3, 6 and 9 seconds

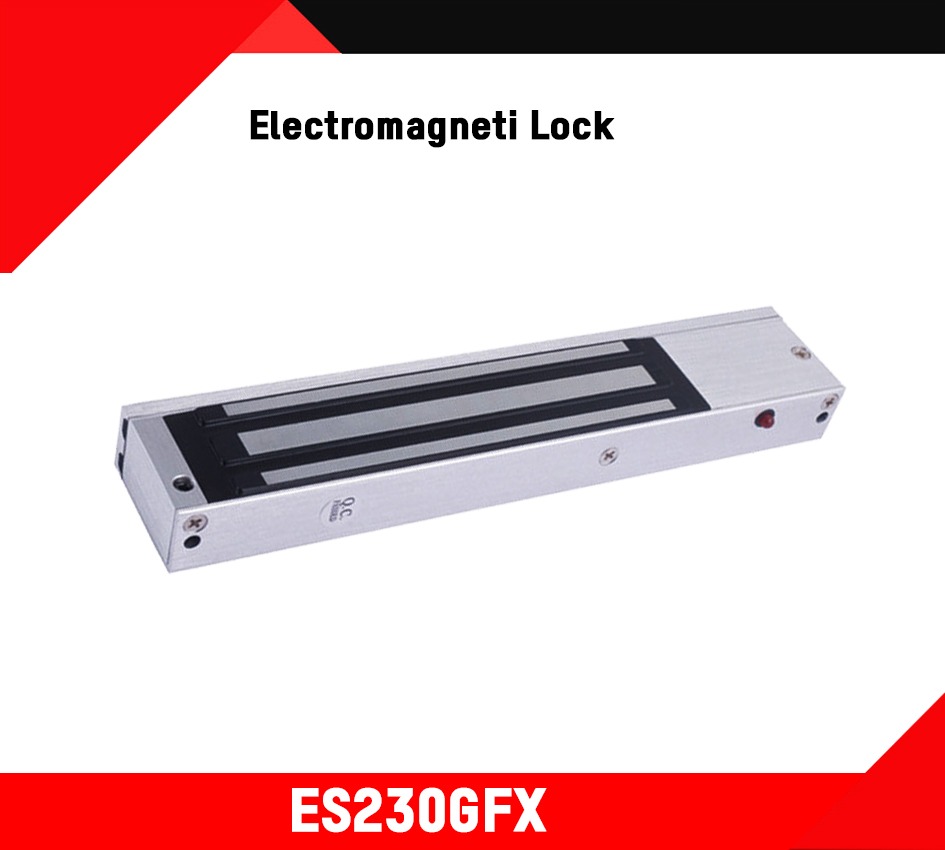

ES230GFX
Key Features
- Door status, lock status monitoring output
- Low current consumption
- Reliable holding force
- Green/red LED indication for lock status
- Voltage and current spike protection PCB
- Material: high strength, anodized aluminum housing
- Anti-residual magnetism kick-off button
- Full range of optional brackets
- Durable and silent operation
