Description

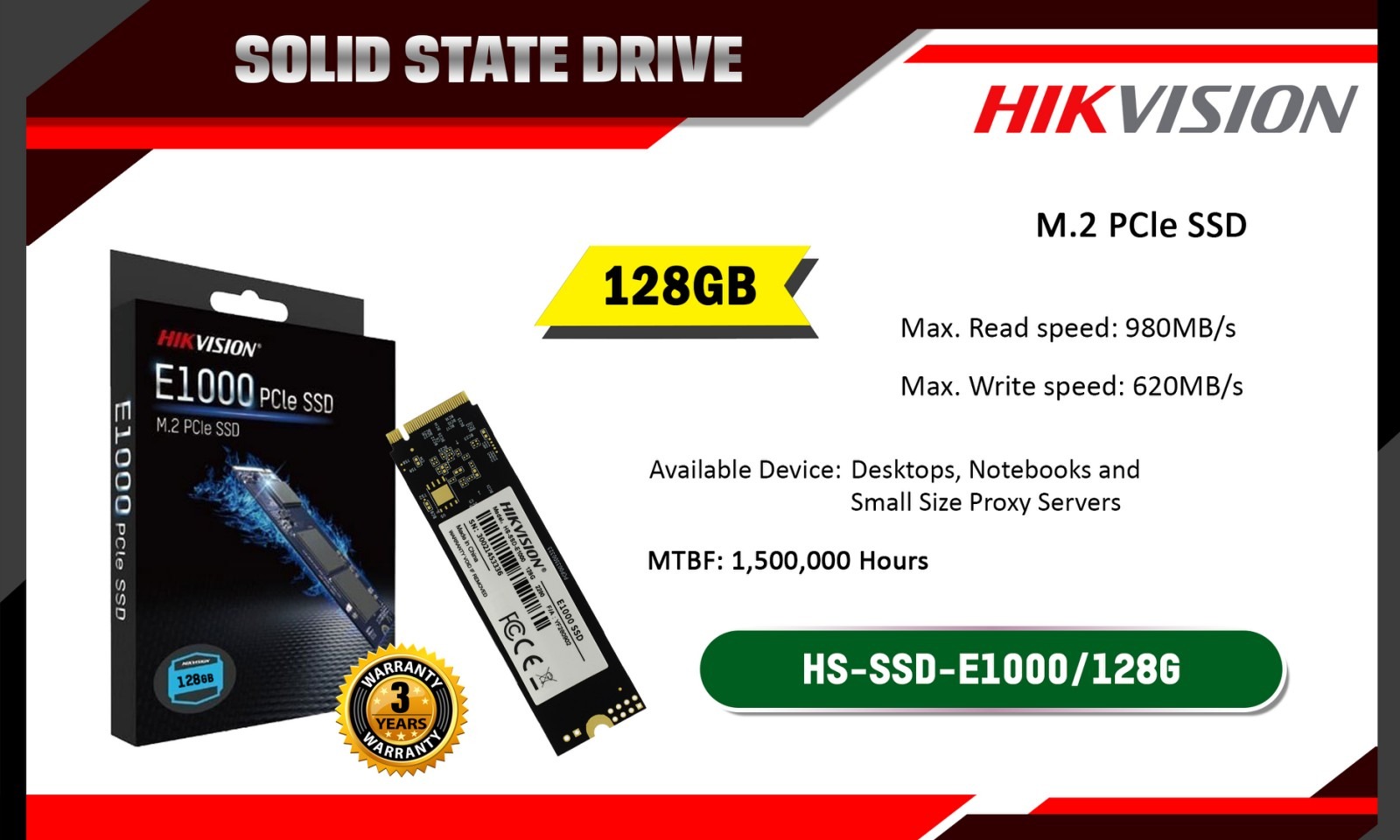

| Model | HS-SSD-E1000/128G |
|---|---|
| Capacity | 128 GB |
| Form Factor | M.2 (NGFF) |
| Interface | PCle Gen 3 x 4 |
| Dimensions | 22 mm x 80 mm x 1.5 mm (0.87″ x 3.15″ x 0.06″) |
| Drive | PCl Express Base 3.1, NVMe 1.2 |
| Typical Application | PC ( Notebook And Desktop ) Small-Size Proxy Server |
| Max. Sequential 128 K Read Speed | Up to 1,950 MB/s |
| Max. Sequential 128 K Write Speed | Up to 1,260 MB/s |
| Max. Random 4K Read IOPS | 180 K |
| Max. Random 4K Write IOPS | 170 K |
| Power Consumption | |
| Read ( RMS Max. ) | 3200 mW |
| Write ( RMS Max. ) | 2800 mW |
| Idle ( RMS Max. ) | 2 mW |
| Endurance ( TBW ) | 200 TB |
| NAND Flash Memory | 3D TLC |
| Weight | <= 20g (0.04 lb) |
| MTBF ( Mean Time Between Failure ) | 2000000 h |
| Operation Temperature | 0ºC To 70ºC ( 32ºF To 158ºF ) |
| Storage Temperature | -40ºC To +85ºC (-40ºF To +185ºF) |
| Operation Humidity | 5% To 95% ( No Condensation ) |
