Description

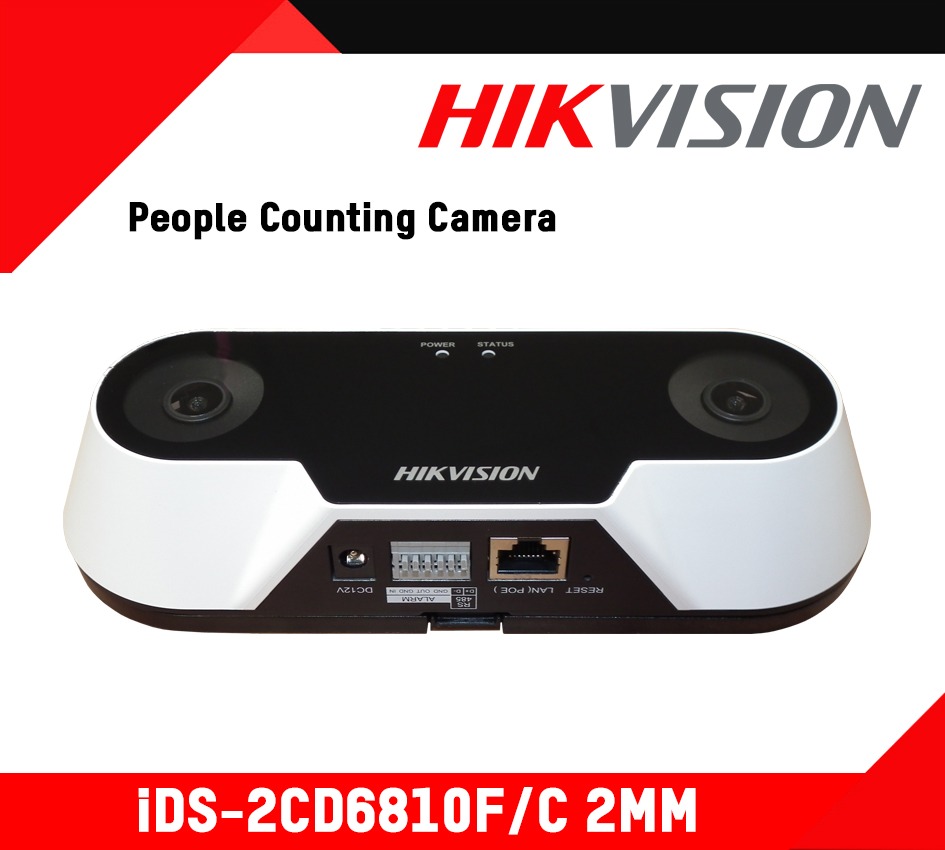

Quick Start Guide: iDS-2CD6810F/C 2MM
Camera |
||
|---|---|---|
| Image Sensor: | 1/3″ Progressive Scan CMOS | |
| Signal System: | PAL/NTSC | |
| Shutter time: | 1/25 s – 1/10,000 s | |
| Lens: | 2.0/2.8mm optional | |
| Lens Mount: | M12 | |
| Adjustment Range: | 2.0 mm, horizontal field of view: 100° 2.8 mm, horizontal field of view: 82° |
|
| Digital noise reduction: | 3D DNR | |
Compression Standard |
||
| Video Compression: | H.264 | |
| H.264 code profile: | Baseline Profile/Main Profile | |
| Video bit rate: | 32Kbps~8Mbps | |
| Dual Stream: | Yes | |
Image |
||
| Max. Image Resolution: | 640 × 960 | |
| Frame Rate: | Main stream: 50Hz: 25fps (640 × 480) 60Hz: 24fps (640 × 480) |
|
| Sub Stream: | 50Hz: 25fps (640 × 960) 60Hz: 24fps (640 × 960) |
|
| Image Settings: | Brightness is adjustable by client software or web browser | |
| 3D DNR: | Support | |
| ROI: | Support 1 fixed region for each stream | |
Network |
||
| Alarm Trigger: | Motion detection, tampering alarm, HDD full, HDD error, network disconnected, IP address conflicted, illegal login | |
| Protocols: | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour | |
| General Function: | One-key reset, Anti-Flicker, heartbeat, mirror, password protection, privacy mask, Watermark, IP address filtering |
|
| System Compatibility: | ONVIF (Profile S, Profile G),ISAPI | |
Intelligent |
||
| People Counting: | Support separate counting of people entering, exiting, and passing by | |
Interface |
||
| Communication Interface: | 1 RJ45 10M/100M self-adaptive Ethernet port, 1 RS-485 interface | |
| Alarm: | 1 input, 1 output (up to DC 24 V, 1A or AC 110 V, 500mA ) | |
| Reset Button: | Yes | |
General |
||
| Operation Condition: | -10 °C to + 40 °C (+14 °F to +104 °F), Humidity 10% to 90%, no condensing | |
| Power Supply: | 12 VDC ± 25%, PoE (802.3af Class3) | |
| Power Consumption: | Max. 7 W | |
| Dimensions: | 194 × 70.2 × 35.8 mm (7.64″ × 2.76″ × 1.4″) | |
| Weight: | 271 g (0.6 lb) | |
