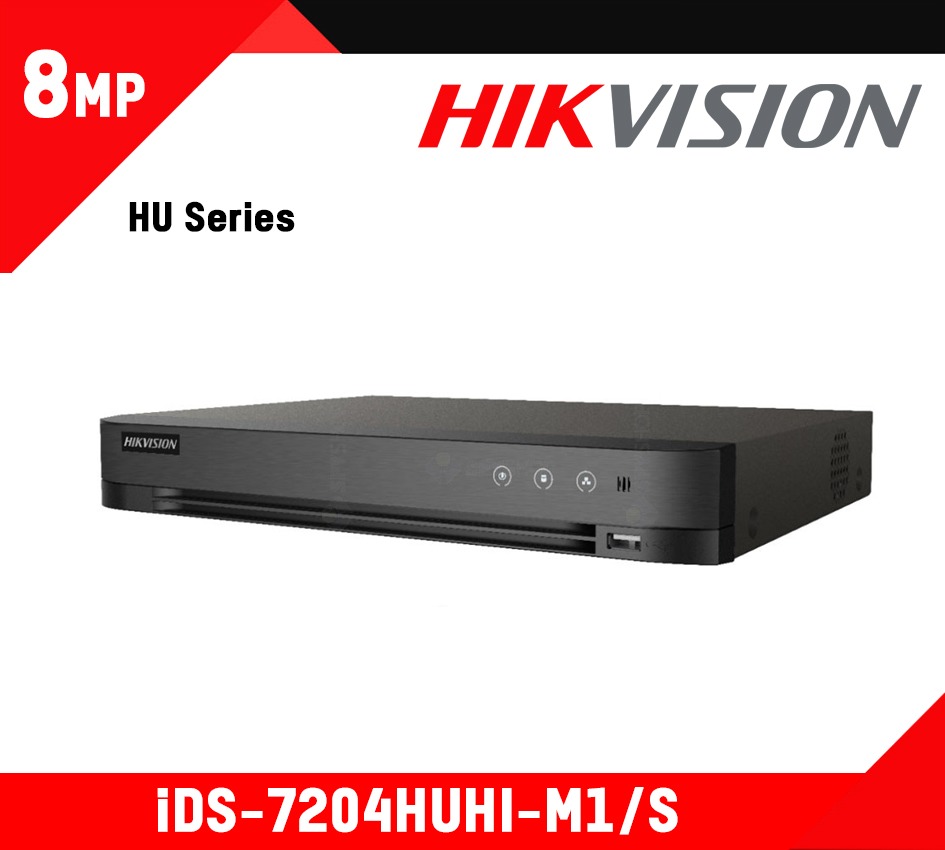

iDS-7204HUHI-M1/S

Description

Datasheet: iDS-7204HUHI-M1/S

User Manual: iDS-7204HUHI-M1/S

Quick User Guide: iDS-7204HUHI-M1/S

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
  • Main stream
    • 8 MP@8 fps/5 MP@12 fps/4 MP@15 fps/8 MP Lite@15 fps/3 MP@18 fps
    • 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

      *: 8 MP@8 fps is only available for channel 1, 8 MP Lite is only available for channel 2 to channel 4.

  • Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

• Video Bitrate: 32 Kbps to 10 Mbps
• Dual-Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input
  • 2-ch (up to 6-ch)
  • Up to 8 MP resolution
  • Enhanced IP mode on:
  • 4-ch (up to 8-ch), each up to 4 Mbps

    Support H.265+/H.265/H.264+/H.264 IP cameras

• Analog Video Input: 4-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDMI Output
  • HDMI:
    • 1-ch, 2K (2560 × 1440)/60Hz,
    • 1920 × 1080/60Hz,
    • 1280 × 1024/60Hz,
    • 1280 × 720/60Hz,
    • 1024 × 768/60Hz
  • VGA:
    • 1-ch, 1920 × 1080/60Hz,
    • 1280 × 1024/60Hz,
    • 1280 × 720/60Hz,
    • 1024 × 768/60Hz

      HDMI/VGA simultaneous output

• CVBS Input: PAL/NTSC
• CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• Synchronous Playback: 4-ch
• HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 8 MP signal input is only available for channel 1.

• AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)

Network

• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Remote Connection: 32
• Network Interface: 1, RJ45 10M/100M self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 1 SATA interface
• Capacity: Up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface
  • Front panel: 1 × USB 2.0
  • Rear panel: 1 × USB 2.0
• Alarm In/Out: N/A

General

• Power Supply: 12 VDC
• Consumption: ≤ 10 W
• Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
• Weight: ≤ 1.16 kg (2.6 lb)
