Description

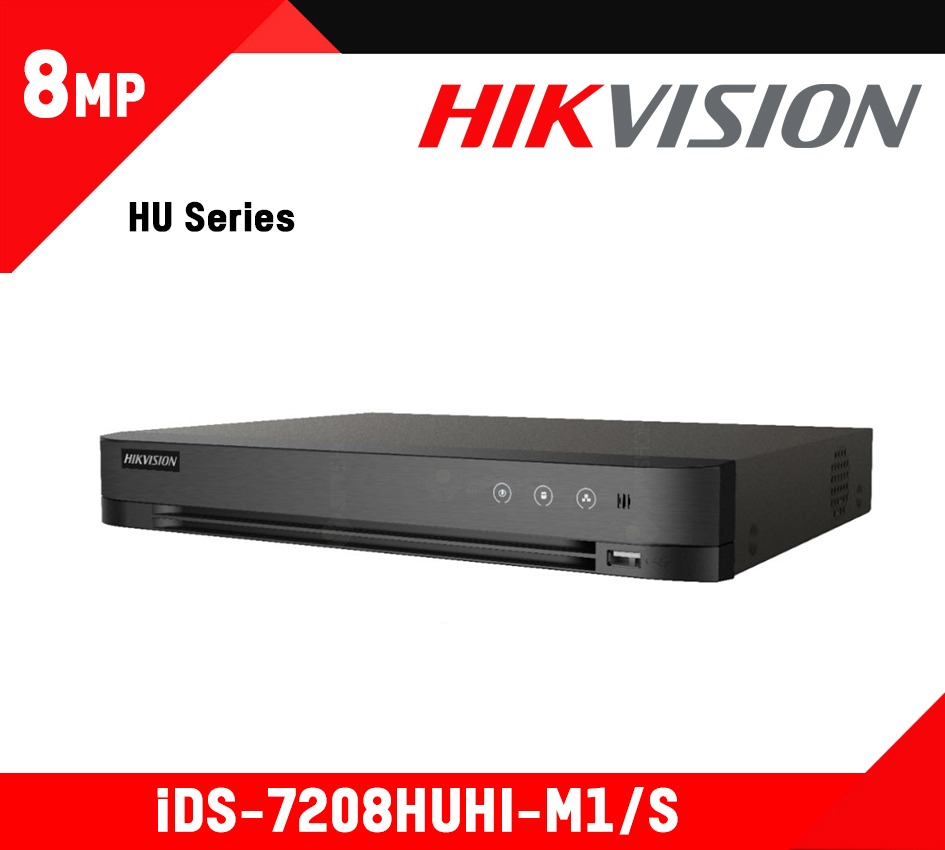

Datasheet : iDS-7208HUHI-M1/S
Quick User Guide : iDS-7208HUHI-M1/S
Recording
- Encoding Resolution
- Main stream:
- 8 MP@8 fps/5 MP@12 fps/
- 4 MP@15 fps/3 MP@18 fps
- 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- WD1/4CIF/CIF@25 fps (P)/30 fps (N)
- Main stream:
- Video Bit Rate: 32 Kbps to 10 Mbps
- Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Dual Stream: Support
- Stream Type: Video, Video & Audio
- Audio Compression: G.711u
- Audio Bit Rate: 64 Kbps
Video And Audio
- Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Synchronous Playback: 8-ch
- IP Video Input: 8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
- HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
- HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS Input: PAL/NTSC
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
- Analog Video Input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
- CVBS Output
- 1-ch, BNC (1.0 Vp-p, 75 Ω),
- resolution: PAL: 704 × 576, NTSC: 704 × 480
- HDMI/VGA Output
- HDMI:
- 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
- 1920 × 1080/60Hz,
- 1280 × 1024/60Hz,
- 1280 × 720/60Hz,
- 1024 × 768/60Hz
- VGA:
- 1-ch, 1920 × 1080/60Hz,
- 1280 × 1024/60Hz,
- 1280 × 720/60Hz,
- 1024 × 768/60Hz
HDMI/VGA simultaneous output
- HDMI:
Network
- Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
- Remote Connections: 64
- Network Interface
- 1,RJ45 10M/100M/1000M self-adaptive
- Ethernet interface
Auxiliary Interface
- Capacity: Up to 10 TB capacity for each disk
- Serial Interface: RS-485 (half-duplex)
- USB Interface
- 1 × USB 2.0;
- 1 × USB 3.0
- Alarm In/Out: N/A
- SATA: 1 SATA interface
General
- Consumption(Without HDD): ≤ 10 W
- Working Humidity: 10% to 90%
- Power Supply: 12 VDC
- Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
- Dimensions(W × D × H): 315 × 242 × 45 mm (12.4 × 9.5 × 1.8 inch)
- Weights (Without HDD): ≤ 2 kg (4.4 lb)
