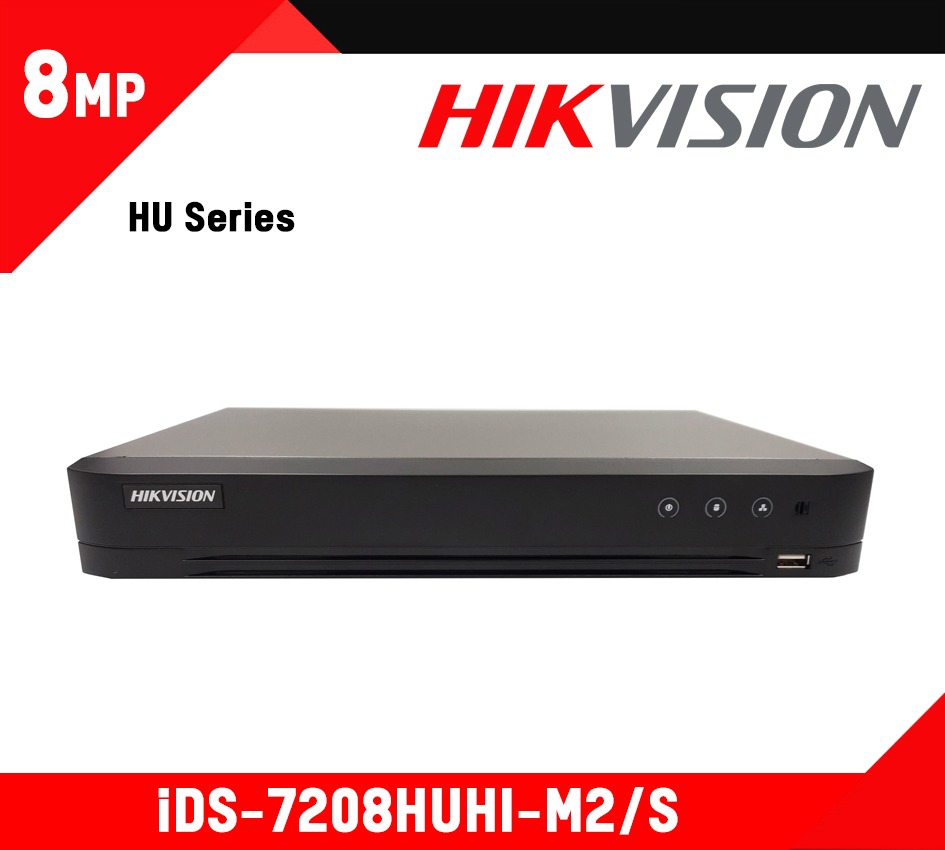

iDS-7208HUHI-M2/S - Hikvision 8MP HU Series DVR in Colombo CCTV Srilanka
iDS-7208HUHI-M2/S
Availability: not in Stock

iDS-7208HUHI-M2/S

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 8 channels and 2 HDDs 5 MP 1U H.265 AcuSense DVR
  • Providing detailed information with face detection
  • False alarm reduction by human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding abilty up to 8 MP @ 8 fps, 5 MP @ 12 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 16 network cameras can be connected
Categories:

Description


Datasheet: iDS-7208HUHI-M2/S

User Manual: iDS-7208HUHI-M2/S

Quick Start Guide: iDS-7208HUHI-M2/S

Recording
  • Encoding Resolution
    • Main stream:
      • 8 MP@8 fps/5 MP@12 fps/4 MP@15 f ps/3 MP@18 fps
      • 1080p/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

        *: 8 MP@8 fps is only available for channel 1.

    • Sub-stream: WD1/4CIF/CIF@25 fps (P)/30 fps (N)

  • Video Bit Rate: 32 Kbps to 10 Mbps
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual Stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bit Rate: 64 Kbps
Video And Audio
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Synchronous Playback: 8-ch
  • IP Video Input: 8-ch (up to 16-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI Input: 8 MP, 5 MP, 4 MP, 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps
  • HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS Input: PAL/NTSC
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog Video Input: 8-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input: 5 MP, 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA Output
    • HDMI:
      • 1-ch, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz,
      • 1920 × 1080/60Hz,
      • 1280 × 1024/60Hz,
      • 1280 × 720/60Hz,
      • 1024 × 768/60Hz
    • VGA:
      • 1-ch, 1920 × 1080/60Hz,
      • 1280 × 1024/60Hz,
      • 1280 × 720/60Hz,
      • 1024 × 768/60Hz

        HDMI/VGA simultaneous output

Network
  • Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connections: 64
  • Network Interface: 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • Capacity: Up to 10 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface
    • 1 × USB 2.0
    • 1 × USB 3.0
  • Alarm In/Out: N/A
  • SATA: 2 SATA interface
General
  • Consumption(Without HDD): ≤ 15 W
  • Working Humidity: 10% to 90%
  • Power Supply: 12 VDC
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Weights (Without HDD): ≤ 2 kg (4.4 lb)
