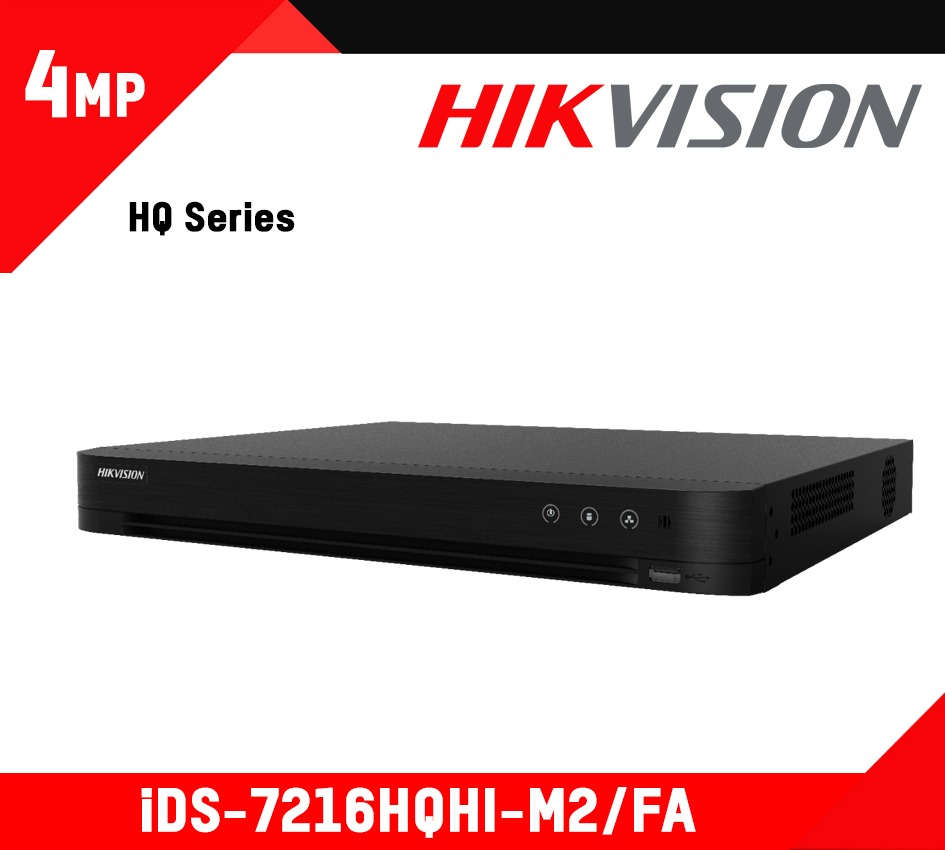

iDS-7216HQHI-M2/FA

Description

Datasheet: iDS-7216HQHI-M2/FA

User Manual: iDS-7216HQHI-M2/FA

Quick Start Guide: iDS-7216HQHI-M2/FA

Smart Analysis

• Facial Detection And Capture: Face picture comparison, face picture search
• Face Picture Library: Up to 16 face picture libraries, with up to 500 face pictures in total (each picture ≤ 1 MB, total capacity ≤ 80 MB)
• Face Picture Comparison: 1-ch face picture comparison alarm (HD analog camera)

Human/Vehicle Analysis

• False Alarm Reduction: Up to 4-ch

Recording

• Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
• Encoding Resolution
  • Main stream:
    • When 1080p lite mode not enabled:
      • For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
      • For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps
      • For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
      • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
    • When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)
  • Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)
• Video Bitrate: 32 Kbps to 6 Mbps
• Dual Stream: Support
• Stream Type: Video, Video & Audio
• Audio Compression: G.711u
• Audio Bitrate: 64 Kbps

Video And Audio

• IP Video Input
  • 2-ch (up to 18-ch)
  • Up to 6 MP resolution
  • IP enhanced mode on:
    • 8-ch (up to 24-ch), each up to 4 Mbps
    • Support H.265+/H.265/H.264+/H.264 IP cameras
• Analog Video Input: 16-ch, BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
• HDTVI Input: 4 MP lite, 3 MP, 1080p30, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

  *: The 3 MP signal input is only available for channel 1 of iDS-7204HQHI-M1/FA, for channel 1/2 of iDS-7208HQHI-M1/FA, and for channel 1/2/3/4 of iDS-7216HQHI-M1/FA.

• AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
• CVBS Input: PAL/NTSC
• CVBS Output
  • 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
• HDMI/VGA Output
  • 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
• Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)，16-ch via coaxial cable
• Audio Output: 1-ch, RCA (Linear, 1 KΩ)
• Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
• Synchronous Playback: 16-ch

Network

• Remote Connection: 128
• Network Protocol: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
• Network Interface: 1, RJ45 10/100/1000 Mbps self-adaptive Ethernet interface

Auxiliary Interface

• SATA: 2 SATA interface, up to 10 TB capacity for each disk
• Serial Interface: RS-485 (half-duplex)
• USB Interface
  • Front panel: 1 × USB 2.0;
  • Rear panel: 1 × USB 3.0
• Alarm In/Out: N/A

General

• Power Supply: 12 VDC, 3.3 A
• Consumption(Without HDD): ≤40 W
• Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
• Working Humidity: 10% to 90%
• Dimension (W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
• Weight (Without HDD): ≤ 2 kg (4.4 lb)
