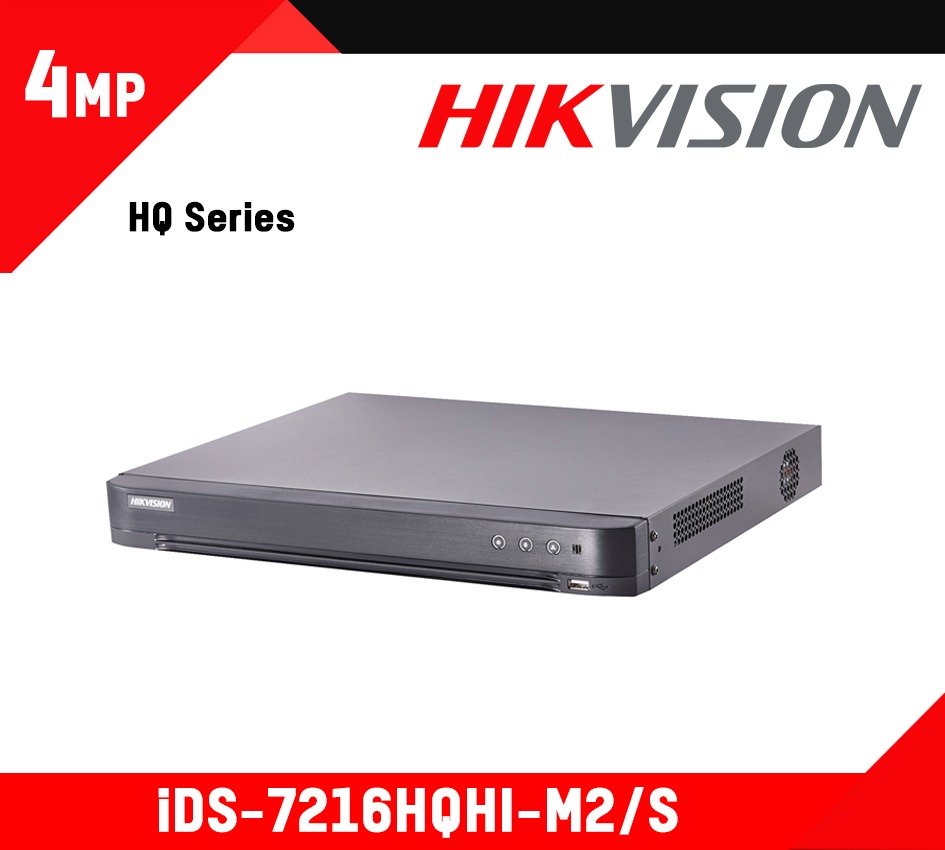

iDS-7216HQHI-M2/S - Hikvision 4MP HQ Series DVR in Colombo CCTV Srilanka
iDS-7216HQHI-M2/S
Availability: not in Stock

iDS-7216HQHI-M2/S

Hikvision cctv cameras and dvr, Nvr in colombo srilanka

Key Features

  • 16 channels and 2 HDDs 1080p 1U H.265 AcuSense DVR
  • Provides detailed information with face detection
  • False alarm reduction through human and vehicle target classification based on deep learning
  • Efficient H.265 pro+ compression technology
  • Encoding ability up to 1080p @ 15 fps
  • 5 signals input adaptively (HDTVI/AHD/CVI/CVBS/IP)
  • Up to 8 network cameras can be connected
Categories:

Description


Datasheet: iDS-7216HQHI-M2/S

User Manual: iDS-7216HQHI-M2/S

Quick Start Guide: iDS-7216HQHI-M2/S

Recording
  • Encoding Resolution
    • Main stream
      • When 1080p Lite mode not enabled
        • For 4 MP stream access: 4 MP lite@15 fps; 1080p lite/720p/WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)

        • For 3 MP stream access: 3 MP/1080p/720p/VGA/WD1/4CIF/CIF@15 fps

        • For 1080p stream access: 1080p/720p@15 fps; VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

        • For 720p stream access: 720p/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

      • When 1080p Lite mode enabled: 4 MP lite/3 MP@15 fps; 1080p lite/720p lite/VGA/WD1/4CIF/CIF@25 fps (P)/30 fps (N)

    • Sub-stream: WD1/4CIF@12 fps; CIF@25 fps (P)/30 fps (N)

  • Video Bit Rate: 32 Kbps to 6 Mbps
  • Video Compression: H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
  • Dual Stream: Support
  • Stream Type: Video, Video & Audio
  • Audio Compression: G.711u
  • Audio Bit Rate: 64 Kbps
Video And Audio
  • Audio Input: 1-ch, RCA (2.0 Vp-p, 1 KΩ)
  • Audio Output: 1-ch, RCA (Linear, 1 KΩ)
  • Synchronous Playback: 16-ch
  • IP Video Input: 4-ch (up to 12-ch);Up to 6 MP resolution;Support H.265+/H.265/H.264+/H.264 IP cameras
  • HDTVI Input: 3 MP, 1080p@30 fps, 1080p@25 fps, 720p@60 fps, 720p@50 fps, 720p@30 fps, 720p@25 fps

    *: The 3 MP signal input is only available for channel 1/2 of iDS-7208HQHI-M2/S, and for channel 1/2/3/4 of iDS-7216HQHI-M2/S.

  • HDCVI Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS Input: PAL/NTSC
  • Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 KΩ) (using the first audio input)
  • Analog Video Input: 16-ch;BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
  • AHD Input: 4 MP, 1080p@25 fps, 1080p@30 fps, 720p@25 fps, 720p@30 fps
  • CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
  • HDMI/VGA Output: 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI/VGA simultaneous output
Network
  • Network Protocols: TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP™, HTTPS, ONVIF
  • Remote Connections: 128
  • Network Interface: 1,RJ45 10M/100M/1000M self-adaptive Ethernet interface
Auxiliary Interface
  • Capacity: Up to 10 TB capacity for each disk
  • Serial Interface: RS-485 (half-duplex)
  • USB Interface
    • 1 × USB 2.0
    • 1 × USB 3.0
  • Alarm In/Out: N/A
  • SATA: 2 SATA interface
General
  • Consumption(Without HDD): ≤ 40 W
  • Working Humidity: 10% to 90%
  • Power Supply: 12 VDC
  • Working Temperature: -10 °C to +55 °C (+14 °F to +131 °F)
  • Dimensions(W × D × H): 380 × 320 × 48 mm (15.0 × 12.6 × 1.9 inch)
  • Weights (Without HDD): ≤ 2 kg (4.4 lb)
