Description

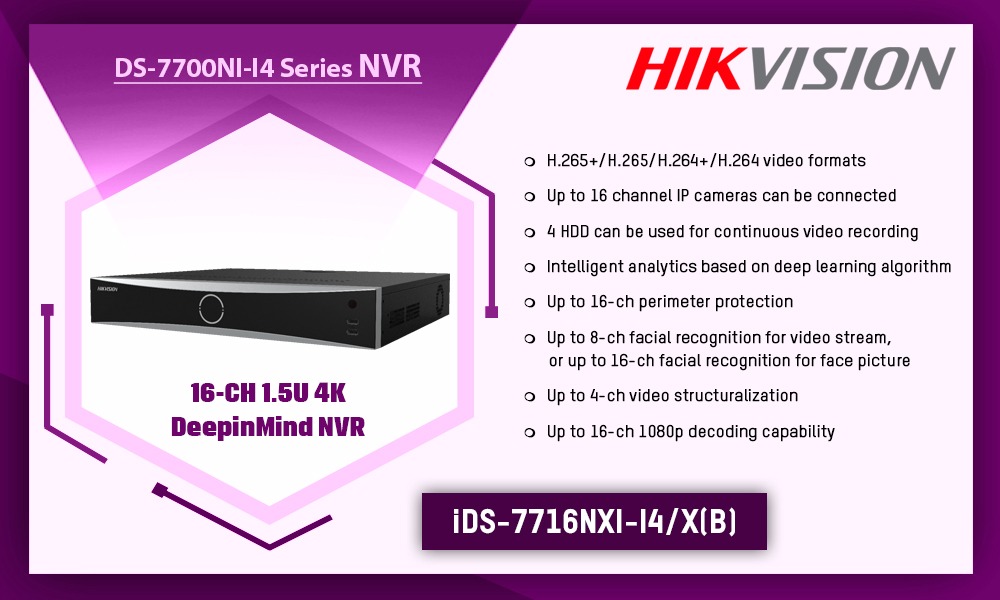

Datasheet: iDS-7716NXI-I4/X(B)
User Manual: iDS-7716NXI-I4/X(B)
Facial Recognition
- Facial Detection And Analytics: Search by picture is supported
- Face Picture Library: 32 libraries;100, 000 pictures
- Face Picture Comparison: 16-ch face pictures comparison alarm, Alarm linkage actions: recording, audio warning, notify surveillance center, send email
Perimeter Protection
- Human/Vehicle Analysis: Up to 16-ch 2 MP (H.264/H.265) video analysis for human and vehicle recognition to reduce false alarm
Video And Audio
- IP Video Input: 16-ch;Up to 12 MP resolution
- HDMI 1 Output: 4K (3840 × 2160)/60Hz, 4K (3840 × 2160)/30Hz, 2K (2560 × 1440)/60Hz, 1920 × 1080/60Hz, 1600 × 1200/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- HDMI 2 Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz
- VGA Output: 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz, 1024 × 768/60Hz, HDMI1/VGA Simultaneous Output
- CVBS Output: 1-ch, BNC (1.0 Vp-p, 75 Ω), resolution: PAL: 704 × 576, NTSC: 704 × 480
- Incoming Bandwidth: 320 Mbps
- Outgoing Bandwidth: 256 Mbps
- Audio Output: 1-ch, RCA (Linear, 1 KΩ)
- Two-Way Audio: 1-ch, RCA (2.0 Vp-p, 1 k Ω)
Decoding
- Format: H.265/H.265+/H.264/H.264+/MPEG4
- Decoding Capability: 16-ch @ 1080p
- Synchronous Playback: 16-ch
- Recording Resolution: 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080p/UXGA/720p/VGA /4CIF/DCIF/2CIF/CIF/QCIF
Network
- Network Protocol: TCP/IP, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Remote Connection: 128
- Network Interface: 2 RJ-45 10/100/1000 Mbps self-adaptive Ethernet interfaces
Auxiliary Interface
- SATA: 4 SATA interfaces
- ESATA: 1 eSATA interface
- Capacity: Up to 10 TB capacity for each HDD
- Serial Interface: RS-485 (half-duplex), RS-232, Keyboard
- USB Interface
- Front panel: 2 × USB 2.0
- Rear panel: 1 × USB 3.0
- Alarm In/Out: 16/8
General
- Power Supply: ≤ 80 W
- Consumption: ≤ 30 W
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10 to 90 %
- Chassis: 19-inch rack-mounted 1.5U chassis
- Dimension (W × D × H): 445 × 400 ×71 mm ( 17.5″× 15.7″ × 2.8″)
- Weight: ≤ 5 kg (11 lb)
