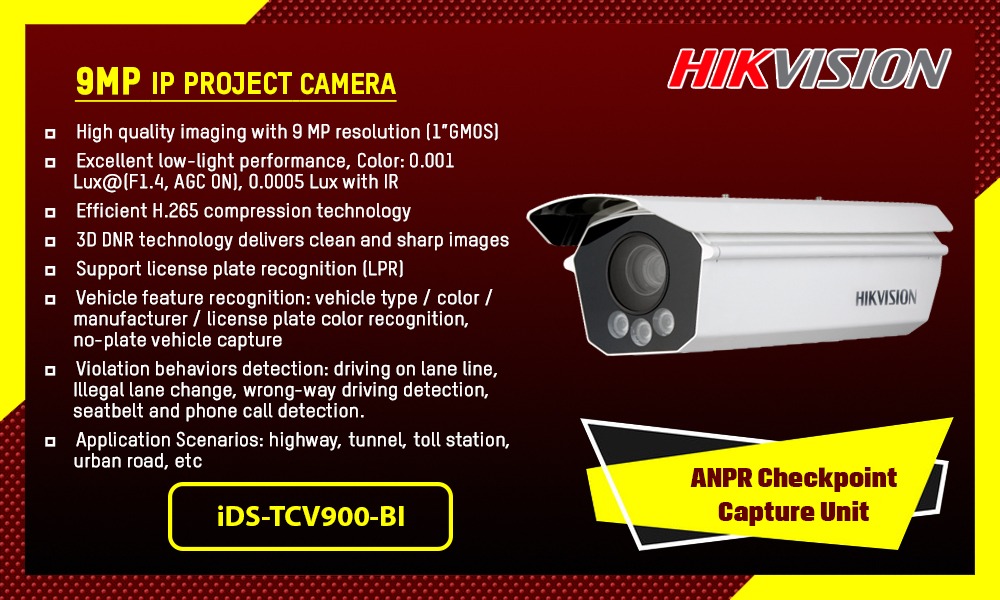

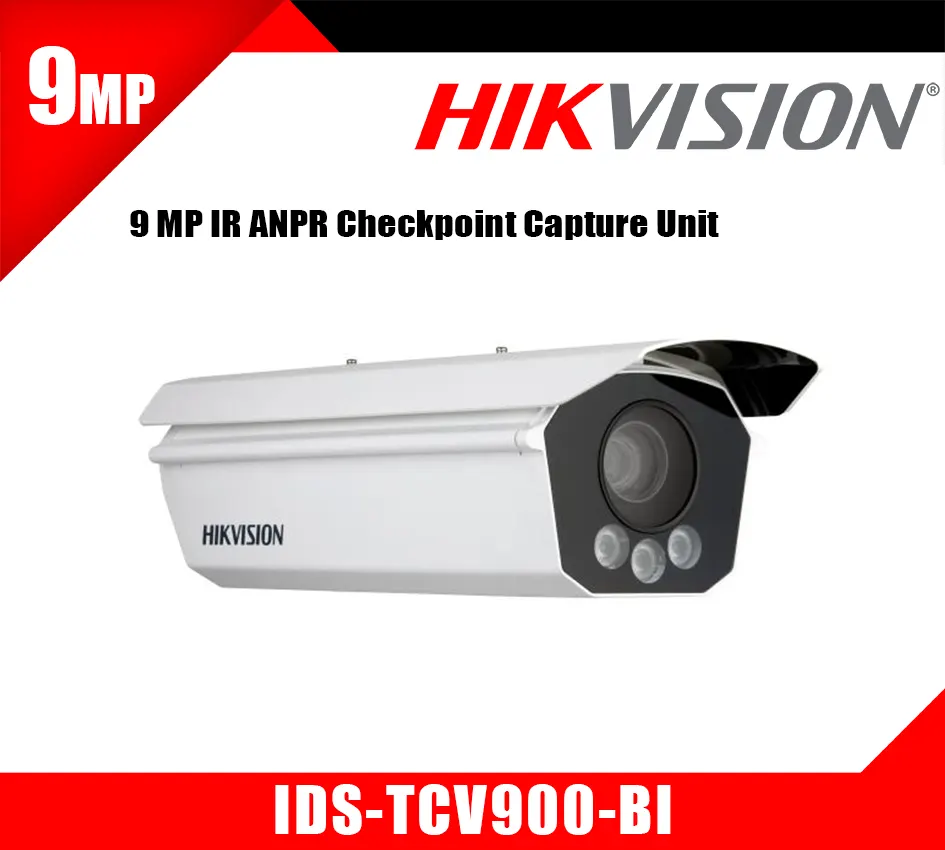

iDS-TCV900-BI

Description

Datasheet: iDS-TCV900-BI

Operation Manual: iDS-TCV900-BI

Configuration Manual: iDS-TCV900-BI

Camera

• Image Sensor: 9 MP (1” GMOS)
• Max. Resolution: 4096 × 2160
• Min. Illumination: Color: 0.001 Lux@(F1.4, AGC ON), 0.0005 Lux with IR
• Shutter Time: 50 us-20000 us
• Day & Night: IR cut filter

Lens

• Focal Length & FOV
  • 11-40 mm (Horizontal: 62° to 23.6°, vertical: 32.2° to 12.2°) ;
  • 25 mm (Horizontal: 31°, vertical: 16.9°)
• Focus: Manual
• Aperture: F1.6-25/F1.4

Illuminator

• Built-In Supplement Light Range: Up to 27 m
• IR Wavelength: 850 nm
• External Supplement Light: External strobe/flash/solid light

Supplement Detection (Radar)

• Speed Range: 5 to 250 km/h

Video

• Main Stream
  • 50 Hz: 25 fps (4096 × 2160, 1920 × 1080, 1280 × 720)
  • 60 Hz: 30 fps (4096 × 2160, 1920 × 1080, 1280 × 720)
• Sub Stream: 1920 × 1080, 704 × 576
• Video Compression
  • H.264 and H.265 encoding
  • Main stream: H.265/H.264/MJPEG
  • Sub-stream: H.265/H.264/MJPEG
• Video Bit Rate: 32 Kbps to 16 Mbps
• H.264 Type: Baseline profile/Main profile/High profile
• H.265 Type: Baseline profile/Main profile/High profile

Network

• Protocols: TCP/IP, HTTP, HTTPS, FTP, DNS, RTP, RTSP, RTCP, NTP, IPv6, UDP
• Simultaneous Live View: Up to 6 channels
• API: ONVIF (Version 2.1, PROFILE S, PROFILE G), ISAPI, SDK
• User/Host
  • Up to 32 users
  • 3 user levels: administrator, operator and user
• Security
  • Password protection, HTTPS encryption, digest authentication for HTTP/HTTPS, digest
  • authentication for ONVIF (Version 2.1)
• Network Storage: MicroSD/TF card (128 GB), local storage and CVR, NVR, ANR
• Client: iVMS-8600, iVMS-4200 (Only for video live view and LPR information search), Hik-Central Master, Hik-Central Pro
• Web Browser: IE8-IE11, plug-in free live view supported


• Image Settings: Saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser.
• Day/Night Switch: Auto/Scheduled/Triggered by alarm in
• SNR: 60 dB
• Image Enhancement: BLC, HLC, 3D DNR
• Picture Overlay: LOGO picture can be overlaid on video with 128 × 128 24-bit bmp format.

Interface

• Ethernet Interface: 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet interfaces
• On-Board Storage: Built-in microSD/TF card, up to 128 GB
• Alarm: 2 input interfaces (T1, SYNC), 7 output interfaces
• RS-485: 3 RS-485 interfaces (half duplex, HIKVISION)
• RS-232: 1 RS-232 interface
• USB: 1 USB 2.0 interface

Event

• Basic Event: HDD Error, network disconnected, IP address conflicted, vehicle detector exception, traffic light detector exception

Road Traffic And Vehicle Detection

• Coverage: 2 to 3 lanes
• Trigger Mode: External I/O trigger/Radar trigger/Video trigger
• Smart Function: Vehicle type classification, vehicle color recognition, no-plate vehicle capture, moving direction detection
• LPR Countries/Regions
  • Middle East:
    The United Arab Emirates (Abu Dhabi, Ajman, Dubai, Fujairah, Ras Al Khaimah, Sharjah and Umm Al Quwain), Qatar, Iran, Iraq, Egypt, Jordan, Kuwait, Saudi Arabia, Pakistan, Oman, Lebanon, Bahrain
  • Africa:
    Nigeria, Kenya, Ivory Coast , South Africa, Tanzania, Mauritius, Morocco, Tunisia, Sierra Leone, Zambia, Ghana, Zimbabwe, Uganda, Angola, Ethiopia, Senegal, Algeria
  • Asia-Pacific:
    Australia, New Zealand, Indonesia, Malaysia, Singapore, South Korea, Thailand, Vietnam, the Philippines, Hong Kong, Macao, Taiwan, Burma, India, Mongolia, Cambodia, Laos, Bangladesh
  • America:
    The United States of America, Canada, Argentina, Chile, Paraguay, Uruguay, El Salvador, Bolivia, Colombia, Brazil, Ecuador, Peru, Mexico, Panama, Costa Rica, Trinidad and Tobago, the Dominican Republic, Guatemala
  • Europe:
    Turkey, Croatia, Slovakia, Czech Republic, Bulgaria, the Republic of North Macedonia, Hungary, Greece, Poland, France, Netherlands, Switzerland, Spain, the UK, Ireland, Germany, Italy, Austria, Israel, Palestinian State, Belgium, Luxembourg, Albania, Kosovo
  • Russian-Speaking Regions:
    Azerbaijan, Belarus, Kazakhstan, Lithuania, Georgia, Estonia, Latvia, Russia, Ukraine, Moldova, Uzbekistan, Kyrgyzstan, Armenia
• Accuracy (Under Recommended Installation And Lighting Conditions)
  • Capture rate > 98%
  • Vehicle moving direction recognition accuracy > 98.5%
  • LPR accuracy > 98%
  • Mistaken capture rate < 2%
  • European and Russian-Speaking Regions:
    • LPR accuracy > 98%
    • Country/Region recognition accuracy > 95%
• No License Plate Detection: Supported
• Motorcycle LPR: Supported
• Vehicle Type: Car/Van/Bus/Truck/Light Truck/SUV_MPV/Pickup/Pedestrian/Motorcycle/Tricycle
• Vehicle Color
  • Red, yellow, green, blue, pink, purple, cyan, brown, white, grey, black
  • Recognizable at daytime only.
• License Plate Color Recognition: Customized to support
• Driving On Lane Line Detection: Supported (only strobe light mode)
• Illegal Lane Change Detection: Supported (only strobe light mode)
• Wrong-Way Driving Detection: Supported
• Emergency Lane Occupation: Supported (truck forbidden lane, emergency lane, urban bus lane)
• Seatbelt Detection: Supported (with flash supplement light)
• Phone Call Detection: Supported (with flash supplement light)

General

• Firmware Version: V4.3.1
• Operating System: Linux
• Power
  • 24 VDC ± 20%/100 to 240 VAC
  • < 30 W
• Material: Aluminum alloy
• Dimension: With package: 175.68 × 137.5 × 443.99 mm (6.92″ × 5.41″ × 17.48″)
• Weight: Camera: approx. 6.5 ± 0.5 kg (14.3 ± 1.1 lb)
• Operating Condition
  • Temperature: -40 °C to +60 °C (-40 °F to +140 °F)
  • Humidity: 95% or less (non-condensing)
• General Function: One-key reset, three streams, heartbeat, password protection, watermark
• Heater: Supported

Approval

• EMC: CE, FCC, RoHS
• Environment: RoHS
• Protection: IP66
