Description

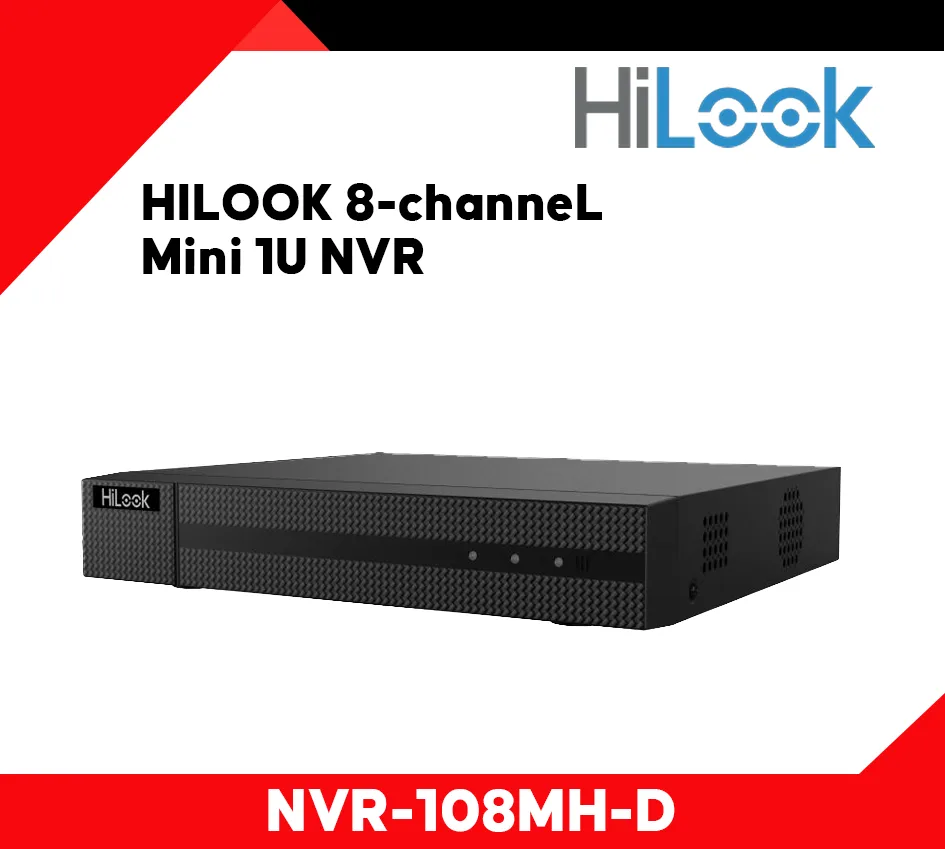

Quick Start Guide: NVR-108MH-D
User Manual: NVR-108MH-D
Video and Audio
- IP Video Input
- 8-ch
- Up to 6 MP resolution
- Incoming Bandwidth: 60 Mbps
- Outgoing Bandwidth: 60 Mbps
- HDMI Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- VGA Output: 1-ch, 1920 × 1080p/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz
- Video Output Mode: HDMI/VGA simultaneous output
Decoding
- Decoding Format: H.265+/H.265/ H.264+/H.264
- Recording Resolution: 6 MP/4 MP/3 MP/1080p/UXGA /720p/VGA/4CIF/DCIF/ 2CIF/CIF/QCIF
- Synchronous playback: 4-ch
- Decoding Capability: 4-ch@1080p (30 fps) or 2-ch@4 MP (30 fps) or 1-ch@6 MP (30 fps)
- Stream Type: Video, Video & Audio
Network
- Remote Connection: 16
- Network Protocol: TCP/IP, DHCP, HiLookVision, DNS, DDNS, NTP, SADP, SMTP, UPnP™
- Network Interface: 1, RJ-45 10/100Mbps self-adaptive Ethernet interface
Auxiliary Interface
- SATA: 1 SATA interface
- Capacity: Up to 6 TB capacity for each disk
- Alarm In/Out: N/A
- USB Interface: Rear panel: 2 × USB 2.0
General
- Power Supply: 12 VDC, 1.5 A
- Consumption: ≤ 10 W (without HDD)
- Working Temperature: -10 °C to 55 °C (14 °F to 131 °F)
- Working Humidity: 10% to 90%
- Dimension (W × D × H): 265 × 225 × 48 mm (10.4″ × 8.9″ × 1.9″)
- Weight: ≤ 1 kg (without HDD, 2.2 lb.)
Certification
- CE: EN50130-4, EN 61000-3-2,EN 61000-3-3
