Description

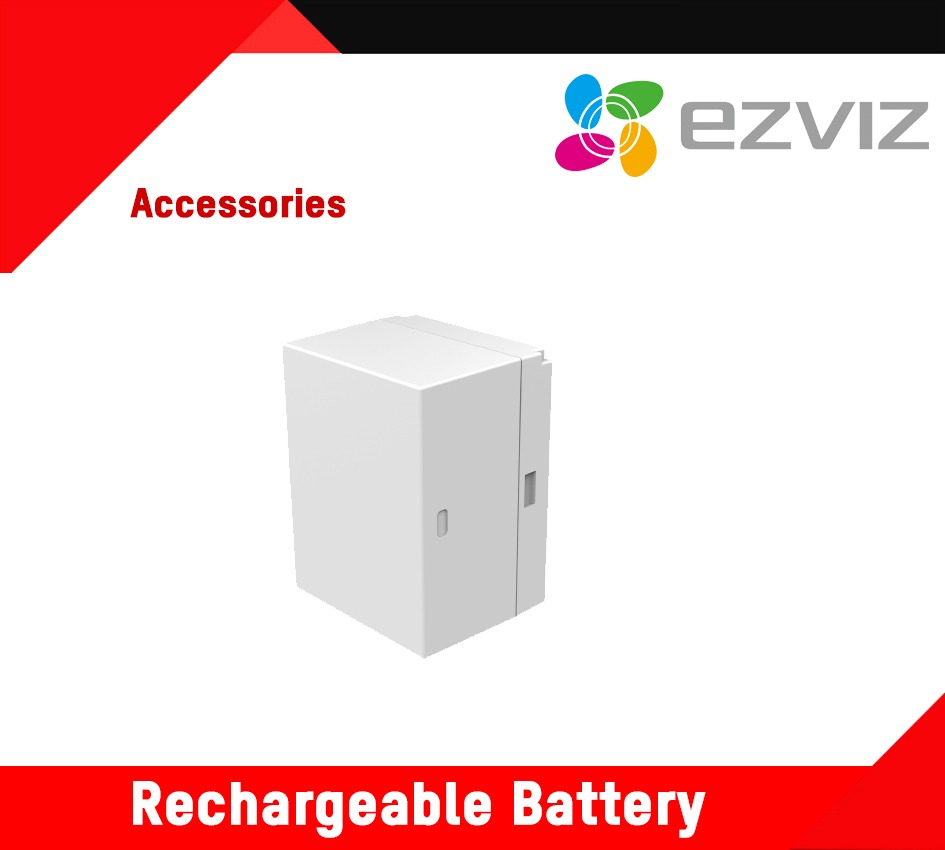

Datasheet: Rechargeable Battery
| Model | Rechargeable Battery |
|---|---|
| Rated Capacity | 5,500 mAh |
| Minimum Capacity | 5,200 mAh |
| Energy | 20.9Wh |
| Nominal Voltage | 3.8V |
| Open Voltage | ≥3.85V |
| Internal Impedance | ≤180mΩ |
| Charge Voltage | 4.35V |
| Standard Charge Current | 1100mA |
| Max Charge Current | 2000mA |
| Standard Discharge Current | 1100mA |
| Max Discharge Current | 2000mA |
| Discharge Cut-off Voltage | 2.8V |
| Product Dimensions | 38.5 x 31.5 x 50.5 mm (1.5 x 1.2 x 2.0 inch) |
| Package Dimensions | 105 x 68 x 142 mm (4.13 x 2.68 x 5.59 inch) |
| Package Contents | |
| Mounting Bracket | 1 |
| Screw Kit | 1 |
