Description

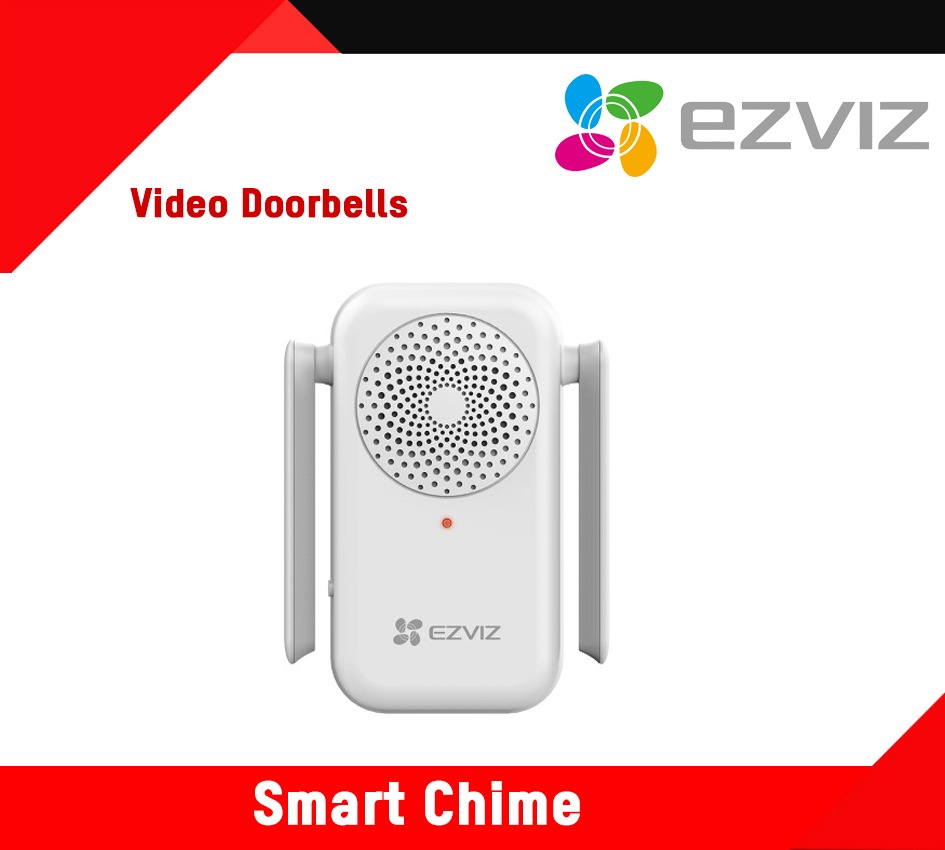

| Model | Smart Chime |
|---|---|
| Network | |
| Protocol | EZVIZ cloud proprietary protocol |
| Interface Protocol | EZVIZ cloud proprietary protocol |
| Interface | |
| Storage | No |
| Wired Network | Does not support |
| Power Supply Interface | EU/US/UK Standard Plug |
| Wi-Fi | |
| Wi-Fi Standard | IEEE802.11b / g / n |
| Frequency Range | 2.4 GHz ~ 2.4835 GHz |
| Channel Bandwidth | Supports 20 MHz |
| Security | 64/128-bit WEP, WPA / WPA2, WPA-PSK / WPA2-PSK |
| Transmission Rate | 11b: 11Mbps, 11g: 54Mbps, 11n: 144Mbps |
| Antennas | Dual External Antennas |
| General | |
| Operating Conditions | Temperature: -10°C to 40°C (14°F to 104 °F ), Humidity: 95% or less (non-condensing) |
| Power Supply | 100V – 240V AC |
| Power Consumption | Max 0.6W |
| Dimension | 100 × 55 × 35 mm (3.94 × 2.17 × 1.38 inch) |
| Weight | 120 g (4.23 oz) |
| In the box: | |
| In the box: | Chime; Quick Start Guide |
| Certifications: | |
| Certifications: | UL / FCC / CE / WEEE / REACH / RoHS |
