Description

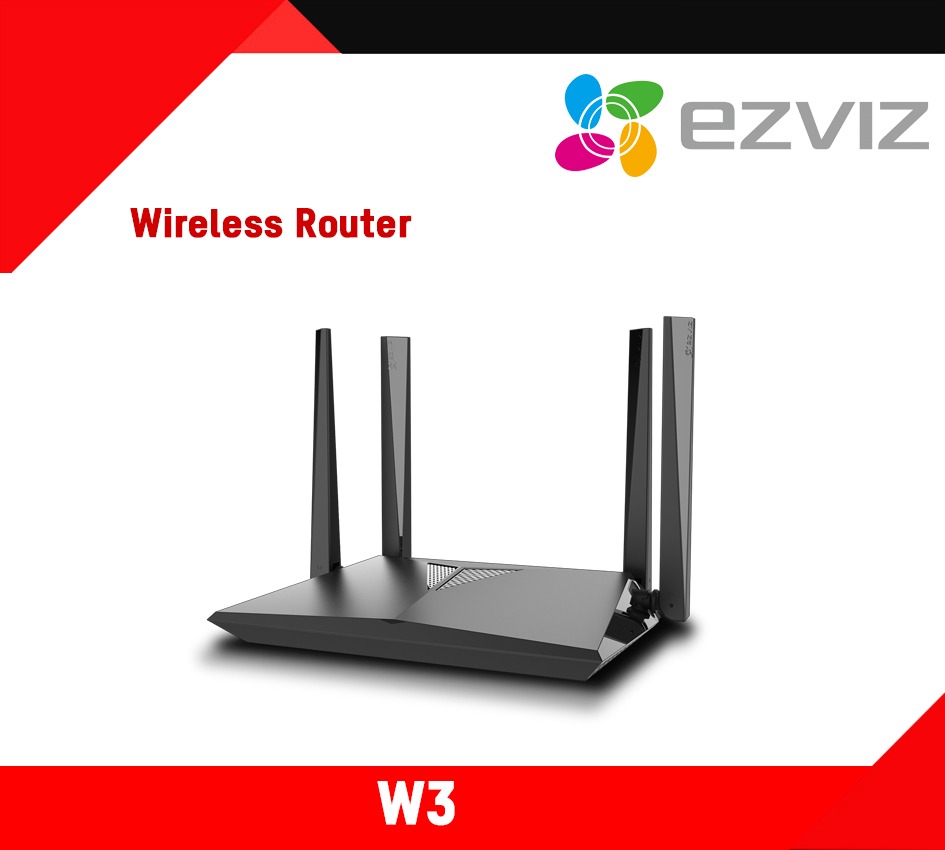

Model | W3 | Network Interface | 3 RJ-45 10/100/1000 Mbps Self-adaptive Ethernet LAN interfaces; 1 RJ-45 10/100/1000 Mbps Self-adaptive Ethernet WAN interface; |
---|---|
Wireless Interface | Supports simultaneous dual-band 2.4Ghz and 5Ghz connections. The actual available channels may vary according to local regulations where the device was sold. Theoretical maximum rate 1266M (400M+866M): 802.11b/g/n+ max:400Mbps, 802.11a/ac max:866Mbps |
CPU | Qualcomm Quad Core @ 716 MHz (Maximum) |
RAM | 128MB |
Flash | 16MB |
Antenna | 4 external @ 5dB max |
HDD | NOT supported |
USB | NOT supported |
Indicator | One System LED |
Button | One-touch access. Hold 6 seconds to RESET. |
Power | DC 12V 1.0A, typical power consumption < 10 watts The adapter supports a wide voltage range from 100V~240V |
Working Temperature and Humidity | 0 °C to +40 °C, 10% to 90%. Indoor use only |
Product Dimensions | 200mm x 150mm x 33mm |
Packaging Dimensions | 295mm x 285mm x 96mm |
Antenna Length | 160mm |
Weight | TBA |
