Description

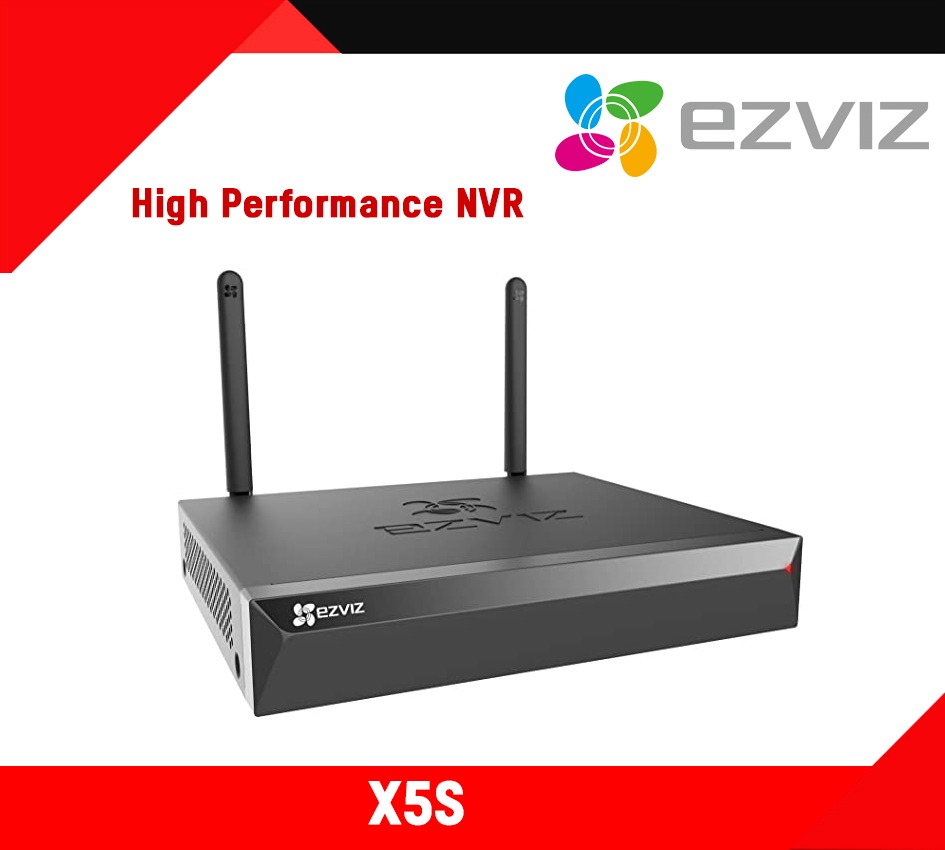

Datasheet: X5S
User Manual: X5S
| Model | X5S | |
|---|---|---|
| Model Parameters | ||
| Model | X5S-4W | X5S-8W |
| IPC access capability | ||
| Wireless IPC access capability | 5MP *4 | 5MP *8 |
| Wired IPC access capability | 5MP *4 | 5MP *8 |
| Network Parameter | ||
| Antenna Number | 2 | 2 |
| Maximum wireless Range | 100m | 100m |
| Radio frequency | 2.4G | 2.4G |
| Ethernet Port | one 10/100M adaptable ethernet interface | one 10/100M adaptable ethernet interface |
| Required access bandwidth | 50mbps | 100mbps |
| Video Output | ||
| VGA | 1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz | 1 channel (identical to HDMI output) resolution up to: 1920*1080/60Hz |
| HDMI | 1 Channel resolution up to: 2560*1440/30HZ | 1 Channel resolution up to: 2560*1440/30HZ |
| Audio/Video Codec | ||
| Recording resolution | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF | 5MP/4MP/3MP/1080p/UXGA/720p/VGA/4CIF/2CIF/CIF/QCIF |
| Video compression | H.265, H.264 | H.265, H.264 |
| Decode playback | Support 4*5MP | Support 8*5MP |
| Video Recording Management | ||
| Video recording mode | Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording | Manual video recording; Motion detecton recording; Scheduled video recording; Event triggered recording |
| Video recording mode | Hard disk backup, Internet applicaton backup | Hard disk backup, Internet applicaton backup |
| Playback mode | Instant playback; Normal playback; Event playback; Tag playback; Log event playback | Instant playback; Normal playback; Event playback; Tag playback; Log event playback |
| Open protocol | ||
| Open protocol support | Yes | Yes |
| HDD | ||
| Interface type | One built-in SATA port | One built-in SATA port |
| Capability | Supports 1TB to 8TB 3.5inch HDD | Supports 1TB to 8TB 3.5inch HDD |
| External Interface | ||
| Audio output | Not support | Not support |
| Audio input | Not support | Not support |
| Hardware reset | Supports | Supports |
| USB2.0 interface | 1 | 1 |
| Dimensions (mm) | ||
| Product dimensions | 235mm x 270mm x 44.5 mm | 235mm x 270mm x 44.5 mm |
| Packaging dimensions | 387mm x 362mm x 75mm | 387mm x 362mm x 75mm |
| Weight | ||
| Net Weight | <=900g | <=900g |
