Description

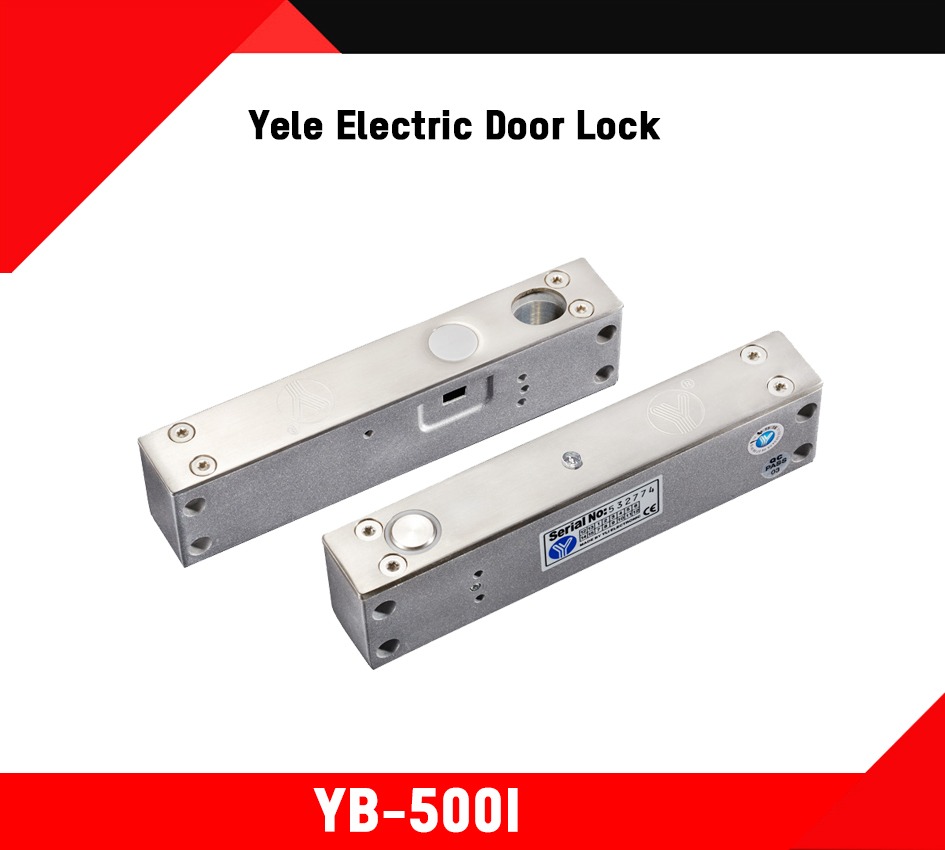

| Model | YB-500I |
|---|---|
| Fail Safe | Lock when energized |
| Face Plate | 150Lx25Wx37H(mm) |
| Bolt | 16mmDIA,stainless steel 13mm throw |
| Voltage | DC12V(DC24V) |
| Start Current | 960mA |
| Standby Current | 180mA |
| Solid Bolt | polishing housing, 1000Kg Holding Force |
| Suitable For | Electric Bolt For Narrow Door |
| Signal Output | Door status Output,NO/COM |
| Surface Temp | Low Temperature |
| Induction Distance | 8mm |
| Operating temp | -10～+55℃(14~131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Special Designed | Tested to 500000 operations |
| Face place material | Stainless Steel |
| Weight | 1.06kg |
