Description

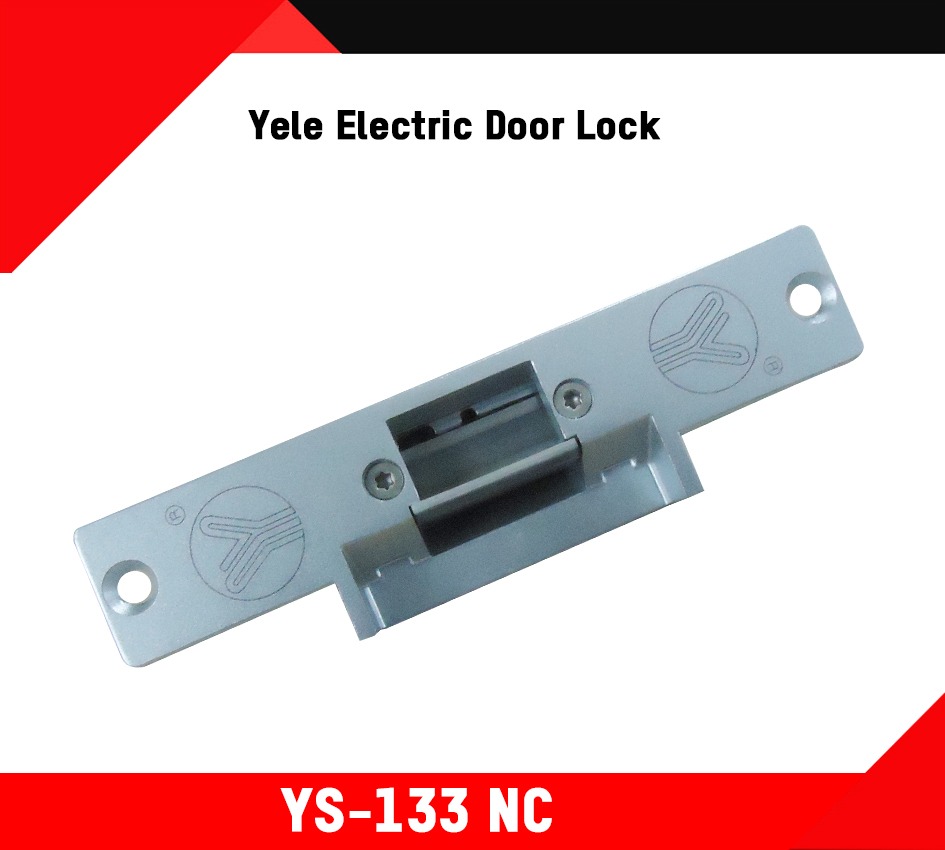

| Model | YS-133 NC |
|---|---|
| Lock Size | 160Lx25Wx31H(mm) |
| Strike Struiture | Stainless Steel |
| Holding Force | 500kg |
| Voltage | 12-24V (Adjustable) |
| Current | DC12V/200mA,DC24V/100mA |
| Feature | Fail SafeYS-133NC |
| Surface Temperature | Within +20℃ |
| Suitable Temperature | -10～+55℃(14-131F) |
| Operating Humidity | 0～90%(non-condensing) |
| Face plate Housing | Painted Steel |
| Funtion | Built-out MOV |
| Glass Thickness | 12-15mm |
| Opening Mode | 90 Degree Swinging Door |
| Weight | 0.4kg |
| Patent No. | 201420531901.9 |
| Certificate | CE-EMC CE-LVD FCC-VOC REACH WEEE |
